    Multi-beam infrared barrier

    Ask Lasest Price
    Brand Name : JSUS
    Model Number : ABI
    Certification : CE
    Payment Terms : Western Union
    • Product Details
    • Company Profile

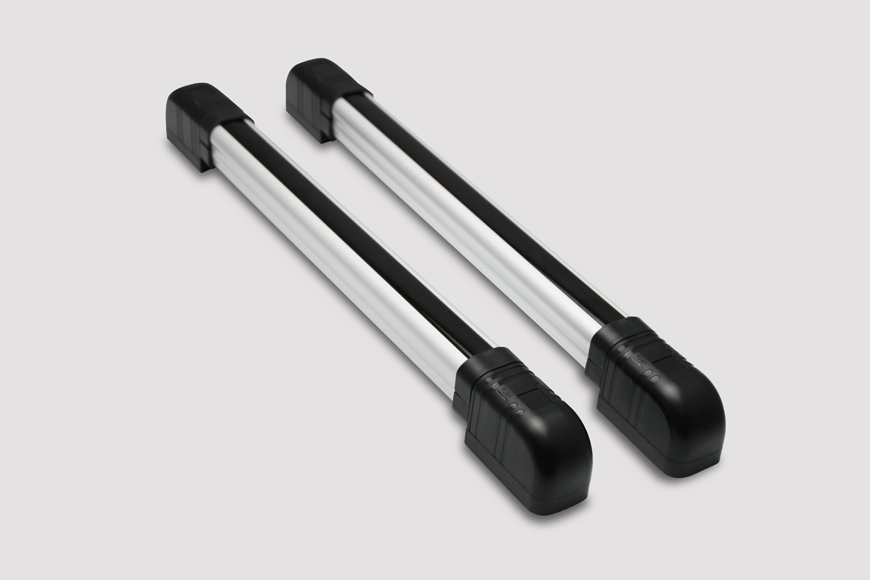

    Multi-beam infrared barrier

    ModelABI10-482ABI30-482ABI60-482ABI100-482ABI10-764ABI30-764ABI60-764ABI100-764
    Outdoor Range10m30m60m100m10m30m60m100m
    Height48cm76cm
    Beams24
    ModelABI10-1086ABI30-1086ABI60-1086ABI100-1086ABI10-1408ABI30-1408ABI60-1408ABI100-1408
    Outdoor Range10m30m60m100m10m30m60m100m
    Height108cm140cm
    Beams68
    ModelABI10-17210ABI30-17210ABI60-17210ABI100-17210ABI10-20412ABI30-20412ABI60-20412ABI100-20412
    Outdoor Range10m30m60m100m10m30m60m100m
    Height172cm204cm
    Beams10   12
    Detection methodSimultaneous interruption of adjacent 2 infrared beams
    Beam frequency2 channel ( A and B )
    Power SupplyDC11~18V
    Current Consumption50~90mA max
    Response speed40msec
    Alarm OutputSwitch ouput signal, NO, NC optional
    Tamper SwitchNC, opens when cover removed
    Operating Temperature-25℃ to +55℃
    Environment Humidity95% max
    Alignment AngleHorizontal 180°(±90°), Vertical unadjustable
    Protection DegreeIP65
    MaterialPC engineering plastic, Aluminum housing

    1.Aluminum housing with special electrophoresis processing, anti-oxidation surface is more wearable and durable.

    2.Integrated and fully sealed structure and external circuit design, improves waterproof ability and installation efficiency.

    3.Anti-tamper switch opens and triggers alarm if power cut off or end-cap removed.

    4.Two different frequency channels, avoiding interference caused by adjacent rays.

    5.Intelligent fuzzy analysis technology adopted to improve response speed and stablity.

    6.Buzzer indication for well alignment.

    7.Alarm method: any two adjacent beams breaks, helpful for preventing false alarms triggered by small animals and birds.

    8.Adjustable response sensitivity.

    9.Designed and recommended for protection of doors and windows.

    10.High immunity to sunlight, rain, frost, fog, snow etc.

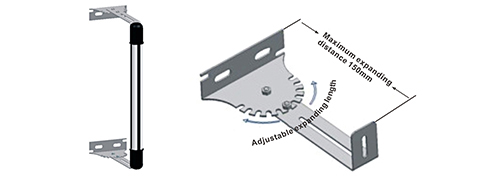

    Optional mounting brackets:

    1.Stainless steel reinforcing, ensures long life.
    2.Ajustable extending length and angles.
    3.2 pairs of brackets used for one pair infrared barrier.
